Why We Switched from Battery SOC to Voltage Control on an EG4 16 kWh Battery System

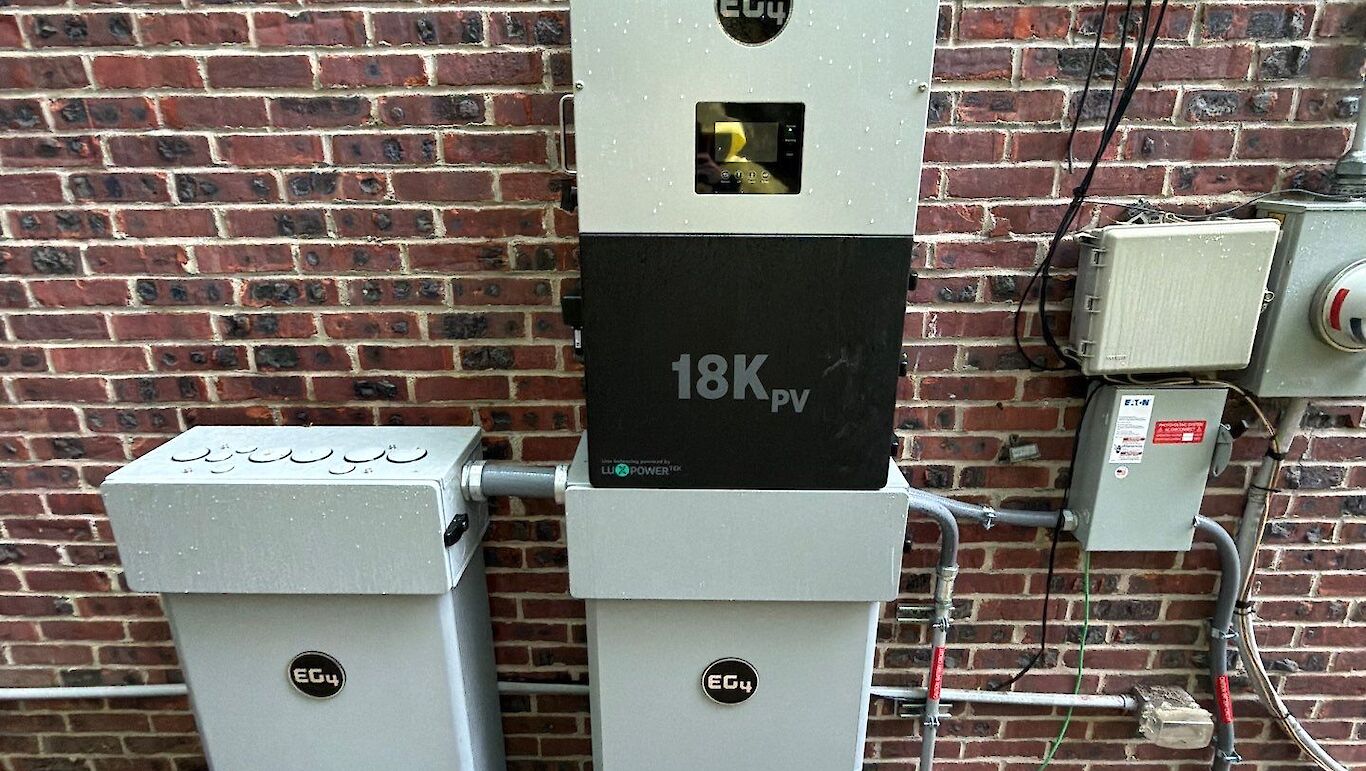

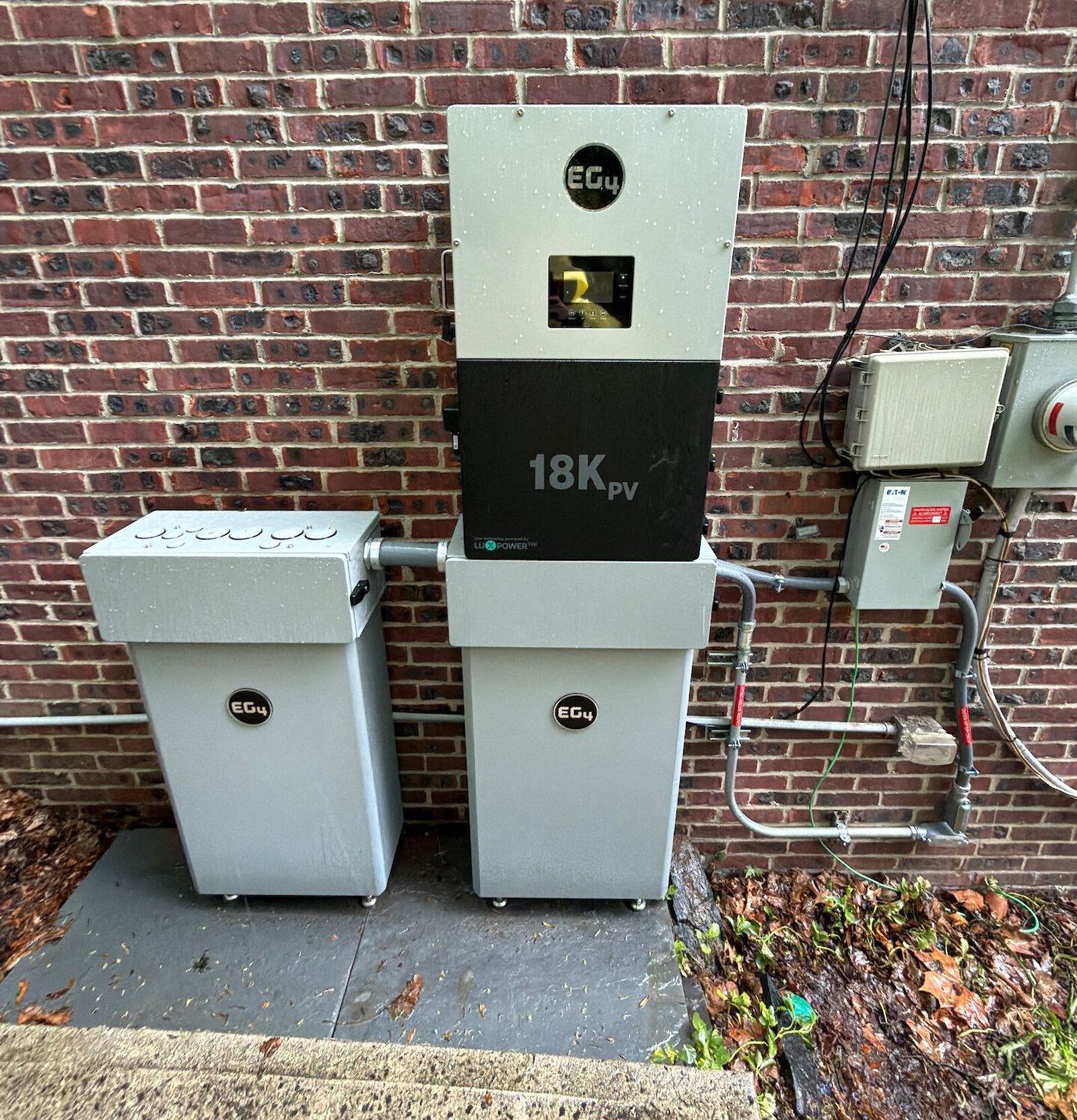

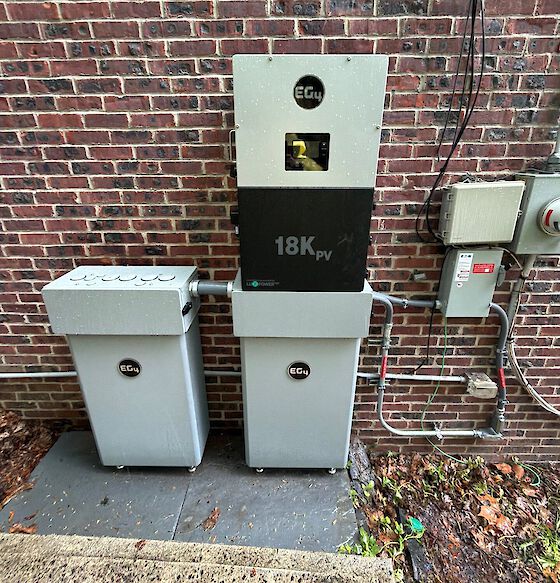

When integrating lithium batteries like the EG4 16kWh WallMount Battery with hybrid inverters, communication issues can sometimes cause unreliable State of Charge (SOC) readings. In this case, the battery communication cable failed, so the system was configured using voltage-based charging and discharging parameters instead of SOC-based controls.

Here’s why that approach can actually work better in certain situations.

The Problem: Battery Communications Failed

The battery communication cable (Ethernet/CAN communication line) between the inverter and battery was not functioning correctly.

Without proper communication:

  • The inverter cannot reliably read:

    • Battery SOC

    • Internal battery calculations

    • Cell balancing status

    • Battery management system (BMS) data

Instead, the inverter only sees:

  • Battery voltage

  • Positive and negative DC terminals

This means the inverter must operate using voltage thresholds instead of smart lithium communication.

Why SOC Can Be Unreliable Without Communications

SOC (State of Charge) is not simply a voltage reading.

The battery estimates SOC using:

  • Voltage

  • Current flow

  • Charge/discharge history

  • Temperature

  • Internal algorithms

  • Cell balancing calculations

Because lithium batteries maintain a relatively flat voltage curve for much of their usable capacity, SOC percentages can fluctuate unexpectedly.

Examples:

  • SOC may suddenly jump from 40% to 25%

  • SOC can stall at one percentage

  • SOC readings may drift over time

  • Batteries may prematurely stop discharging if SOC estimates are inaccurate

This is especially common when communications are unstable or missing.

Why Voltage-Based Control Was Used Instead

Instead of relying on fluctuating SOC values, the inverter was configured using lead-acid style voltage parameters.

In this setup:

  • Charging and discharge decisions are based only on voltage

  • The inverter ignores SOC percentages

  • The system operates directly from battery terminal voltage

For this application, voltage was considered more stable and predictable than inaccurate SOC calculations.

EG4 Voltage Reference Example

For this battery setup:

  • 56.2V ≈ 100%

  • 46V ≈ empty/cutoff

Approximate rule used:

  • About 1 volt ≈ 10% battery capacity

Example rough estimates:

Voltage Approximate Capacity
56V 100%
55V 90%
54V 80%
53V 70%
52V 60%
51V 50%
50V 40%
49V 30%
48V 20%
47V 10%
46V Empty/Cutoff

These are approximate operating references, not exact lithium SOC calculations.

Why Voltage Control Can Sometimes Work Better

With SOC-based cutoff:

  • A battery reporting 20% SOC may stop discharging early

  • Remaining usable energy may still exist

  • Poor SOC calculations can reduce usable battery capacity

With voltage-based control:

  • The inverter continues discharging until true voltage limits are reached

  • More usable energy can often be extracted safely

  • Operation becomes simpler and more predictable

Important Troubleshooting Notes

If battery communications fail:

Check the Communication Cable

  • Verify correct CAN/RS485 pinout

  • Confirm proper Ethernet cable type

  • Ensure no damaged RJ45 connectors

  • Verify communication DIP switch settings

  • Confirm inverter protocol compatibility

Verify Battery Voltage Directly

Use a multimeter at the battery terminals to confirm:

  • Actual battery voltage

  • Voltage sag under load

  • Charging voltage behavior

Confirm Inverter Battery Type Settings

If communications are unavailable:

  • Set inverter to:

    • Lead Acid

    • User Defined

    • Voltage Control Mode

Then manually configure:

  • Bulk voltage

  • Float voltage

  • Low voltage cutoff

  • Reconnect voltage

Watch for Voltage Drop Under Heavy Loads

Lithium batteries can sag temporarily under large loads.

Examples:

  • HVAC startup

  • EV charging

  • Large motor loads

A temporary voltage dip can trigger premature shutdowns if cutoff voltage is set too aggressively.

Final Takeaway

In this system, voltage-based battery management proved more reliable than unstable SOC readings caused by failed battery communications.

Rather than relying on fluctuating software estimates, the inverter simply monitored real battery voltage directly from the battery terminals.

For many off-grid and hybrid systems, especially during communication failures, voltage-based control can provide:

  • More stable operation

  • Better usable battery capacity

  • Fewer false shutdowns

  • Simpler troubleshooting

Proper voltage settings remain critical to avoid over-discharge and protect long-term battery health.
